Description

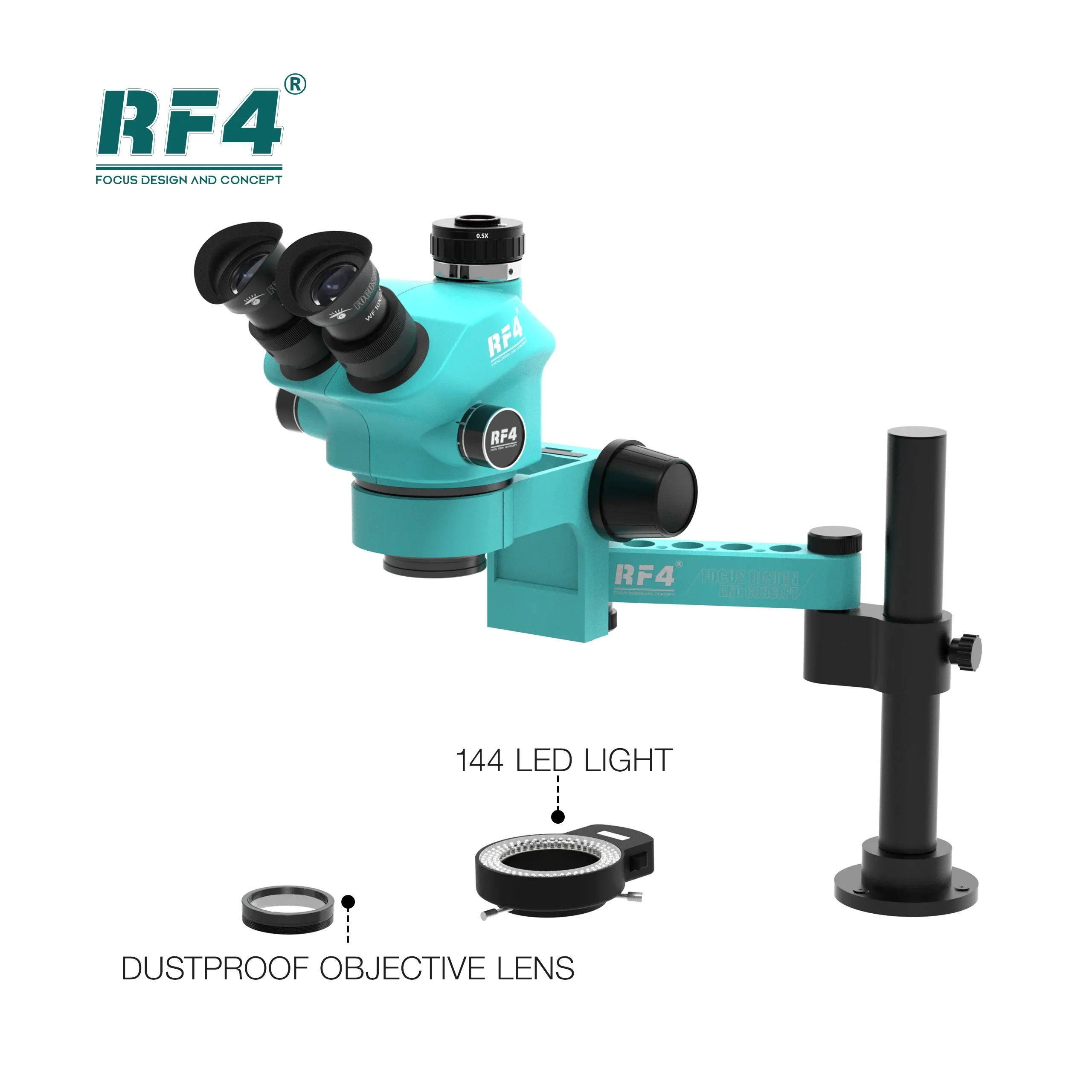

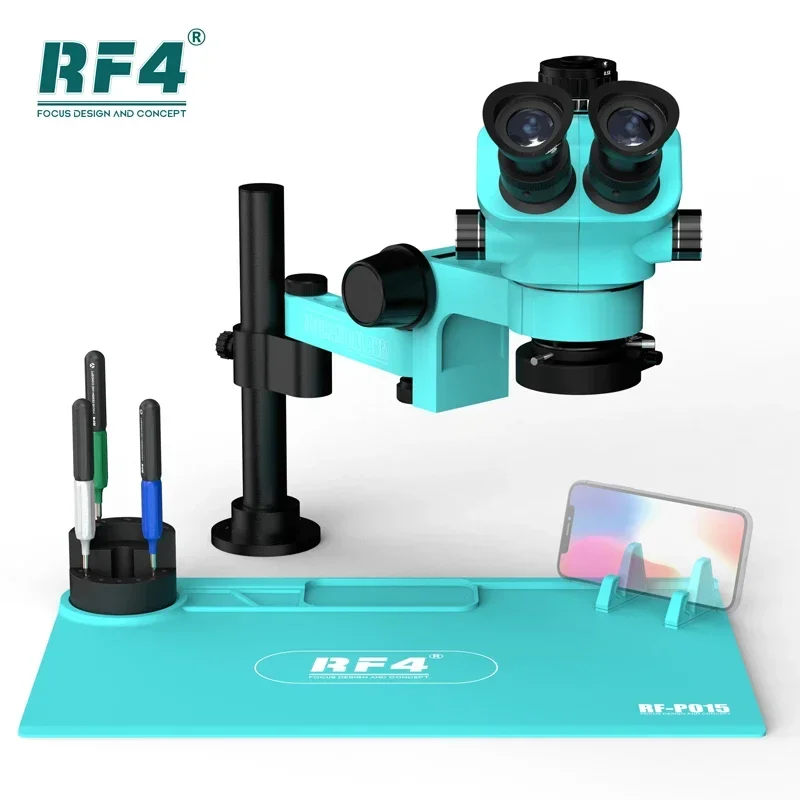

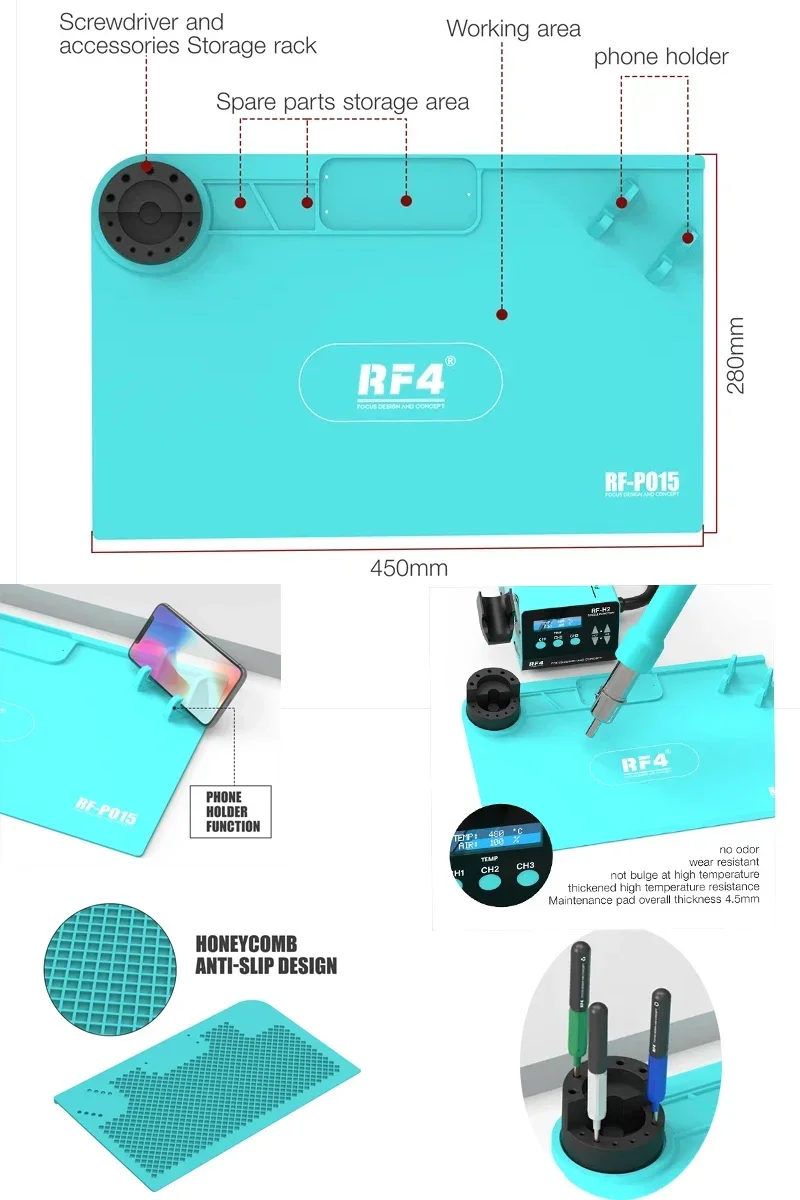

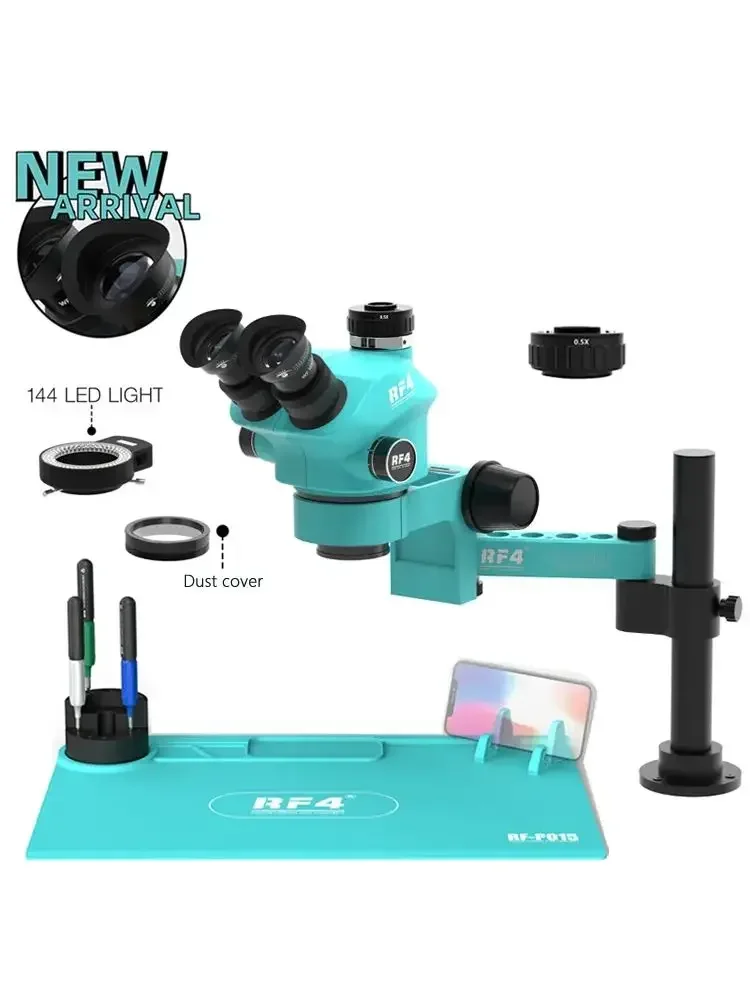

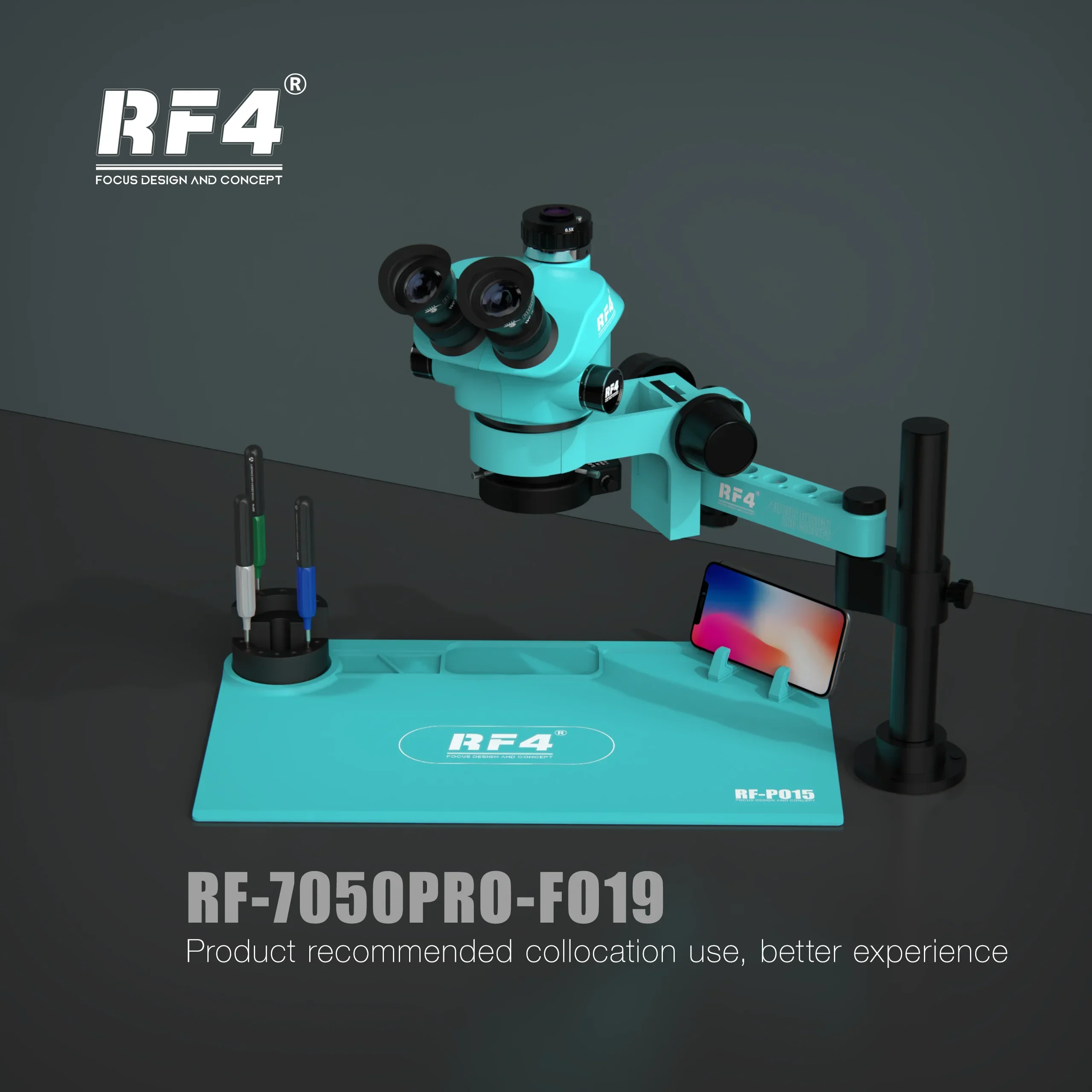

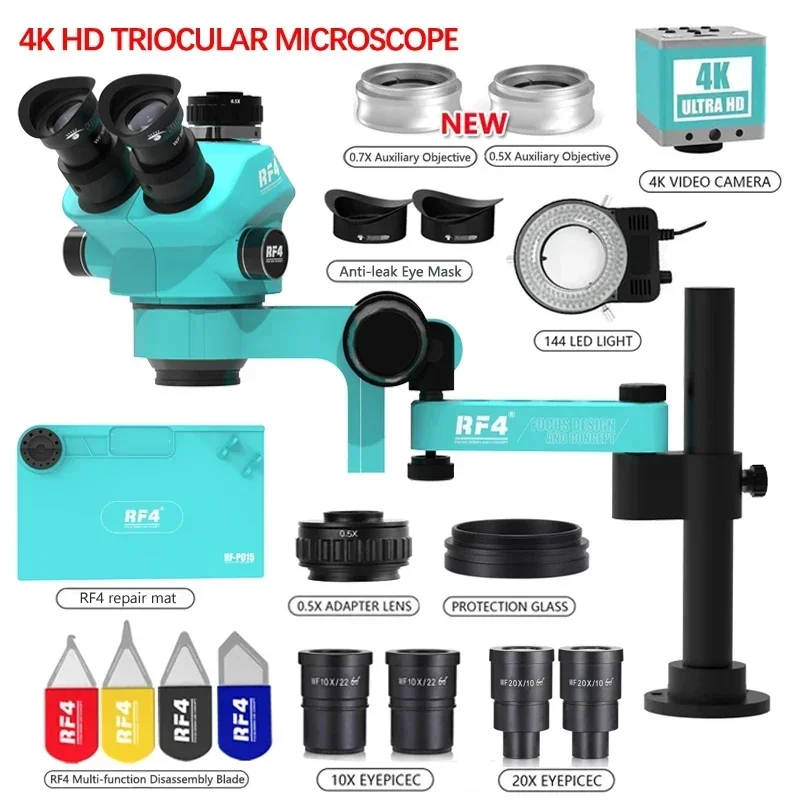

RF4 Folding Swing Arm Trinocular Microscope Insulation Silicone Welding Work Mat Stereo Microscope Set for PCB Soldering Repair

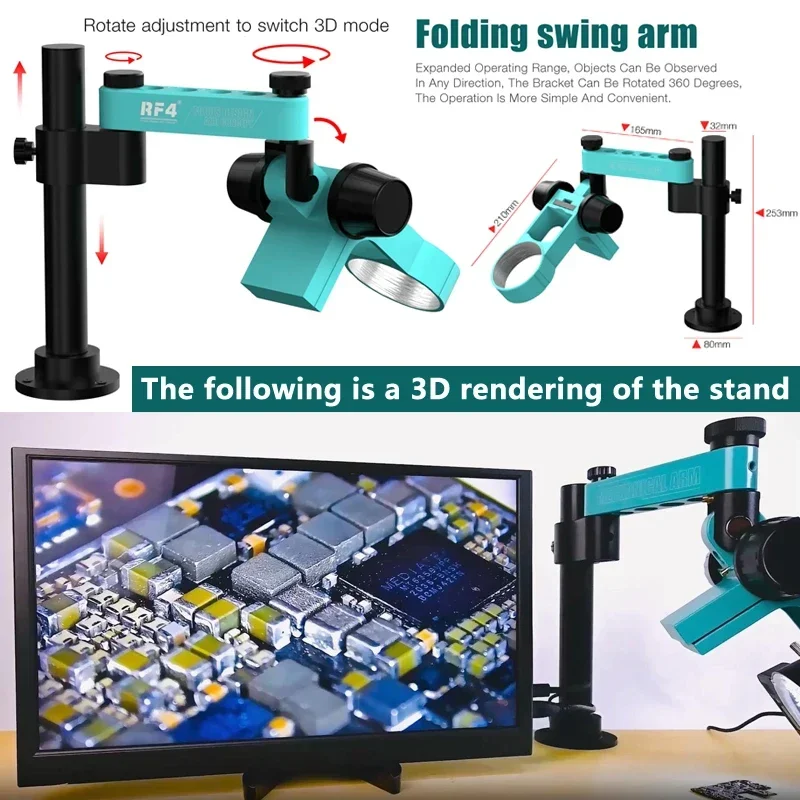

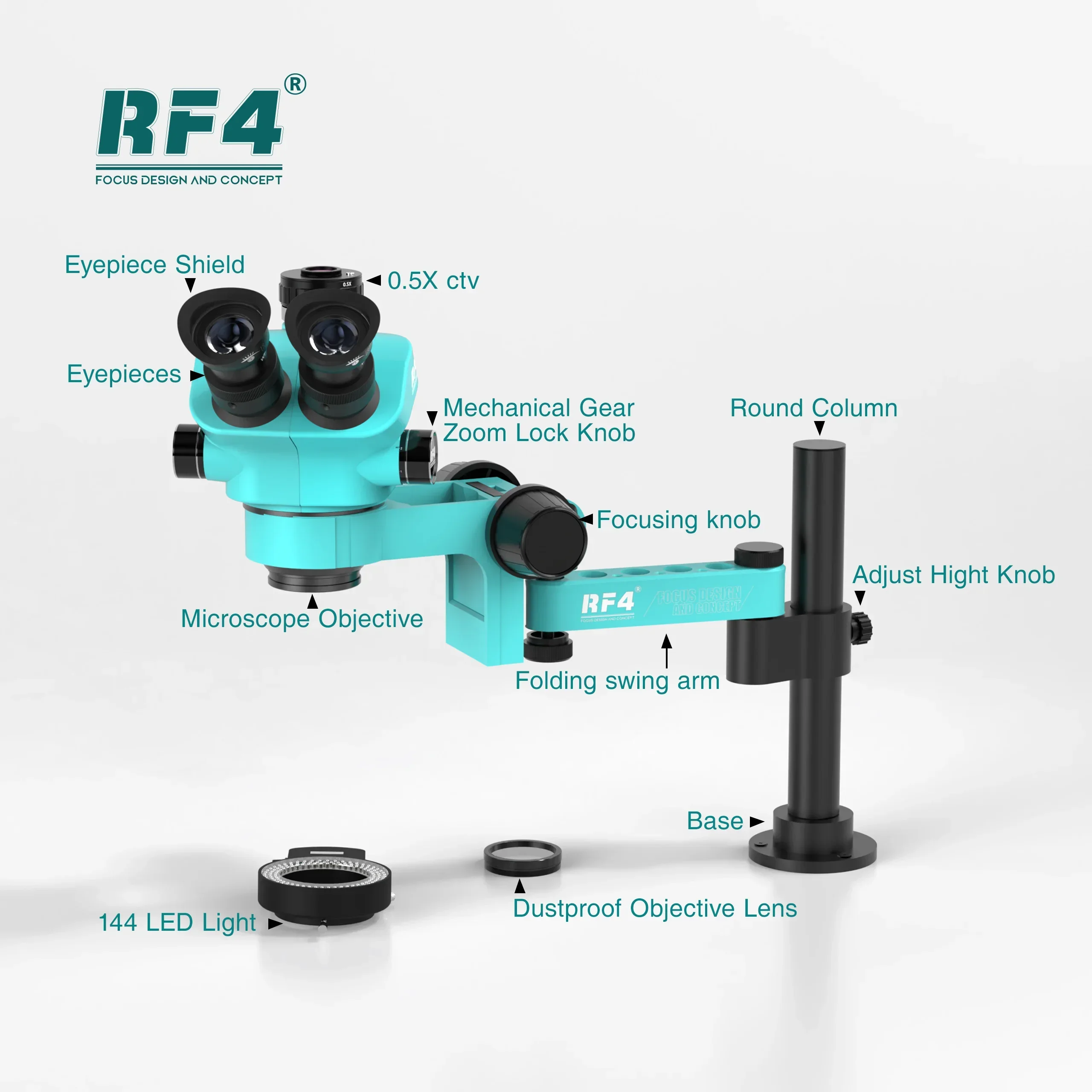

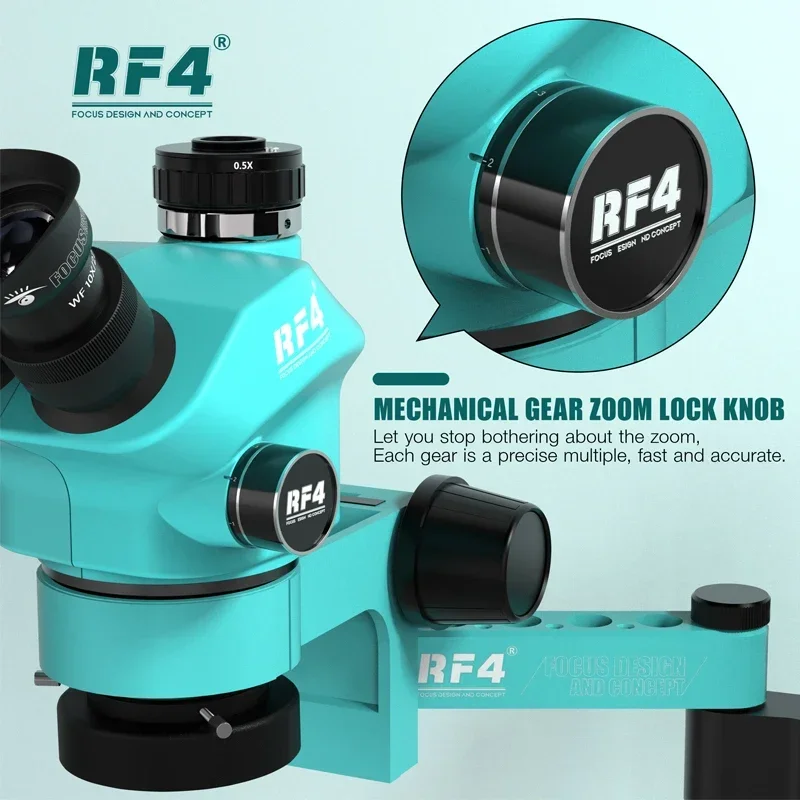

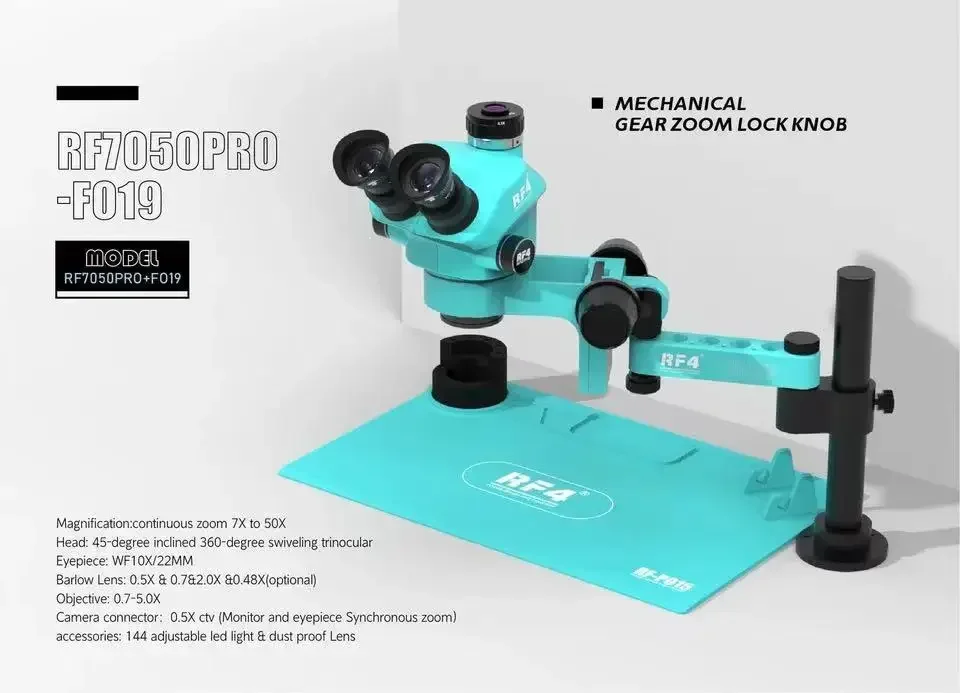

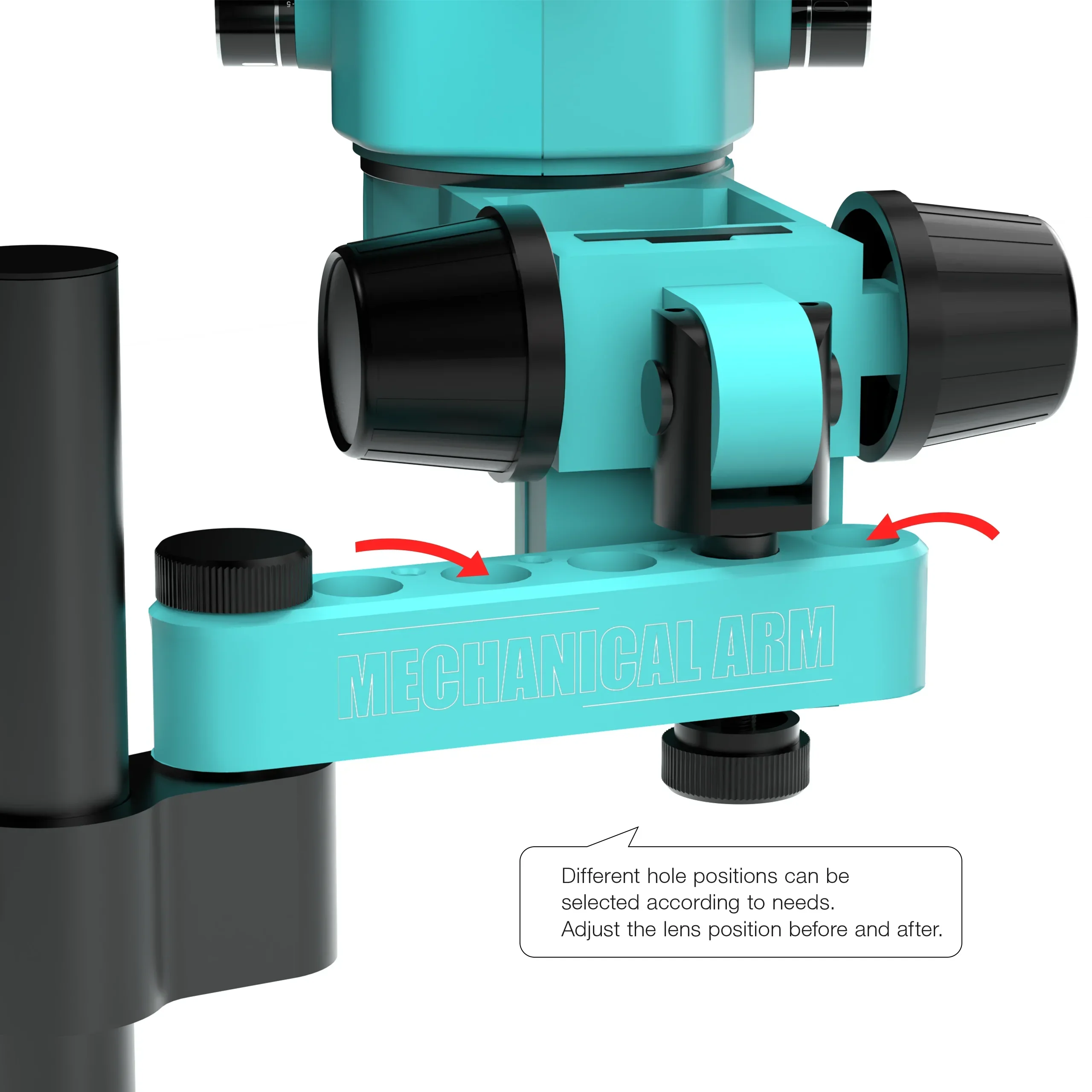

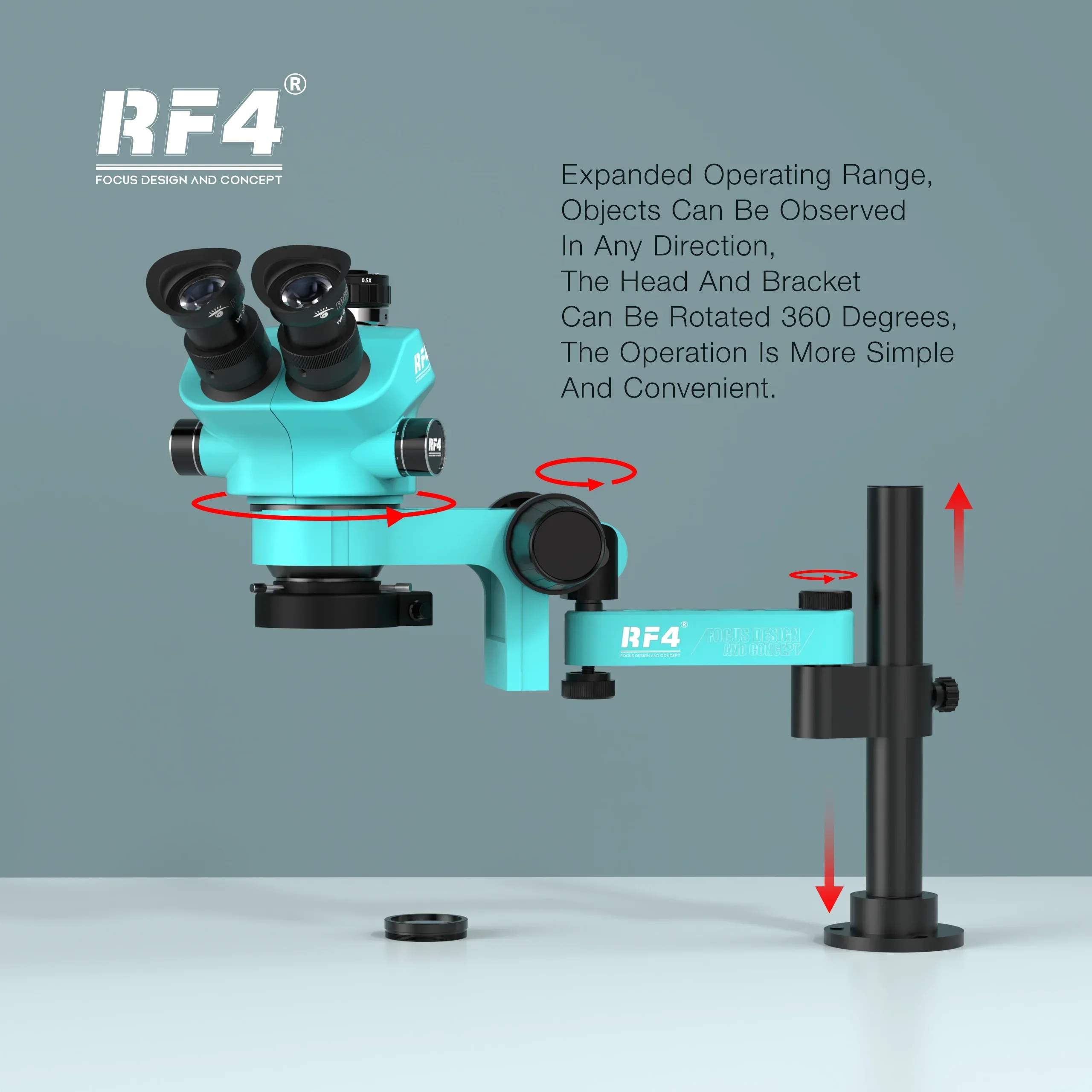

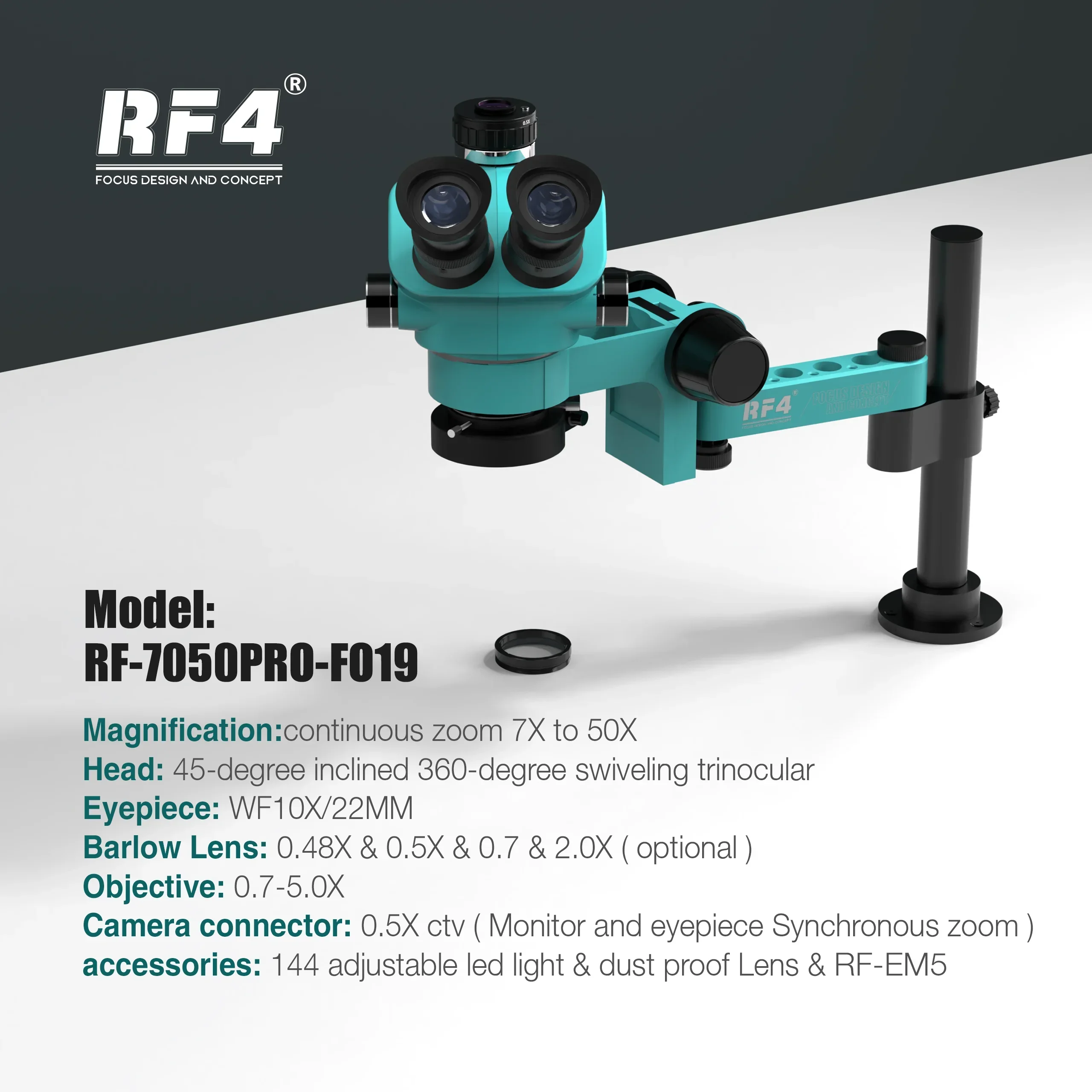

RF4 2024 Latest Microscope RF-7050PRO With 6 Mechanical Gear zoom Locking Knobs,360° adjustable swing arm metal universal telescopic rotation fixed lifting support F019, extended operating range, more simple and convenient work!!!
sleeves to upgrade all microscopes in order to provide better working experience, improve working comfort and reduce fatigue of working under microscopes for long hours. The new mask is ergonomically designed to fit our eyes and prevent afterglow from interfering. After long testing by all regiments,
It has been shown to be effective in reducing user fatigue.
Product parameter
1.
Supporting parameter
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
2.

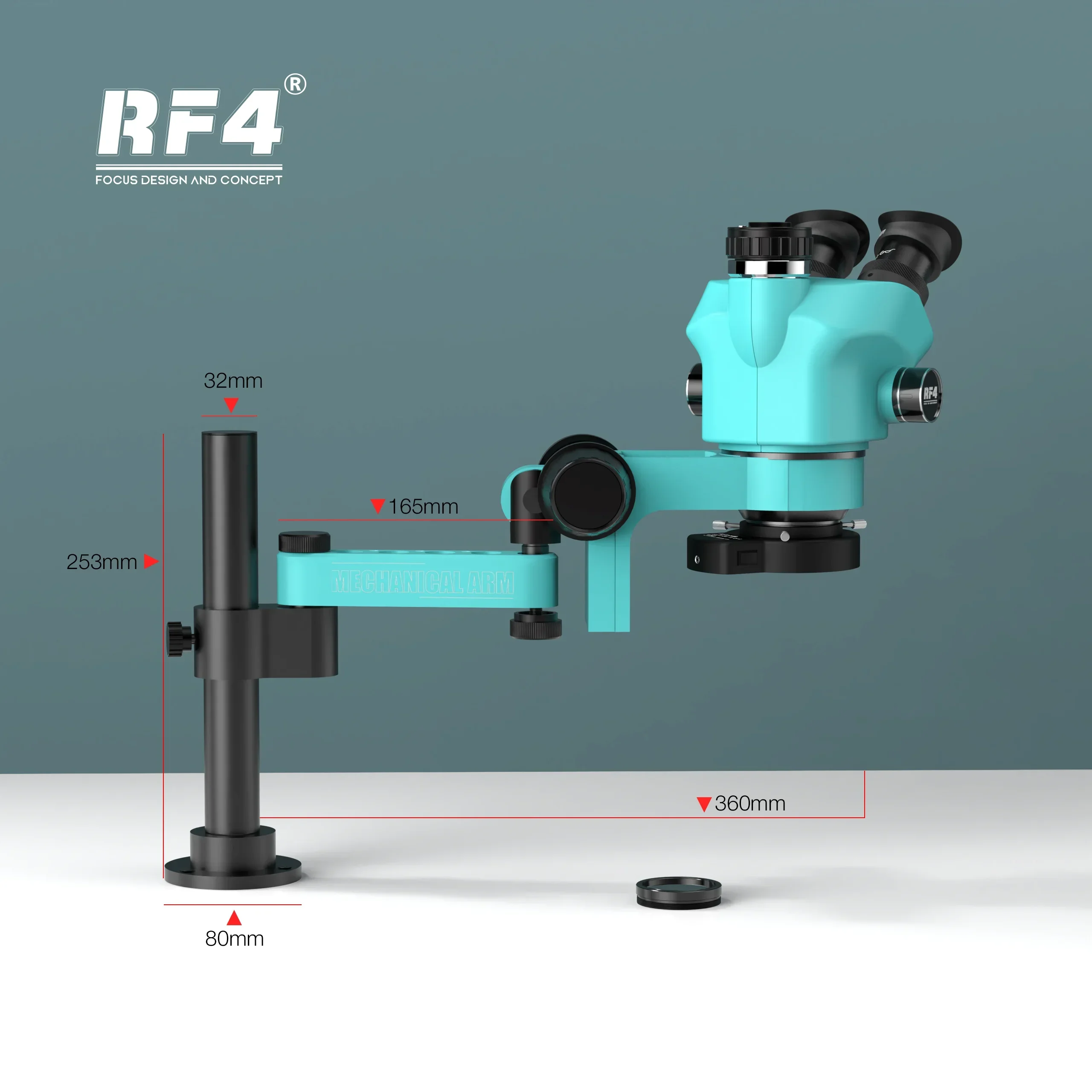

Base parameter
Column height: 240mm
Diameter: φ32mm
Base: 380 x260x18mm
3.
Wide-angle eyepiece 10X/22
Magnification: 10X
Wide visual field 22mm
Matching size: 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes.
The optimal eye height ensures that users can obtain clear images under different visual conditions. High angle wide-angle eyepieces are convenient for observers wearing glasses
4.

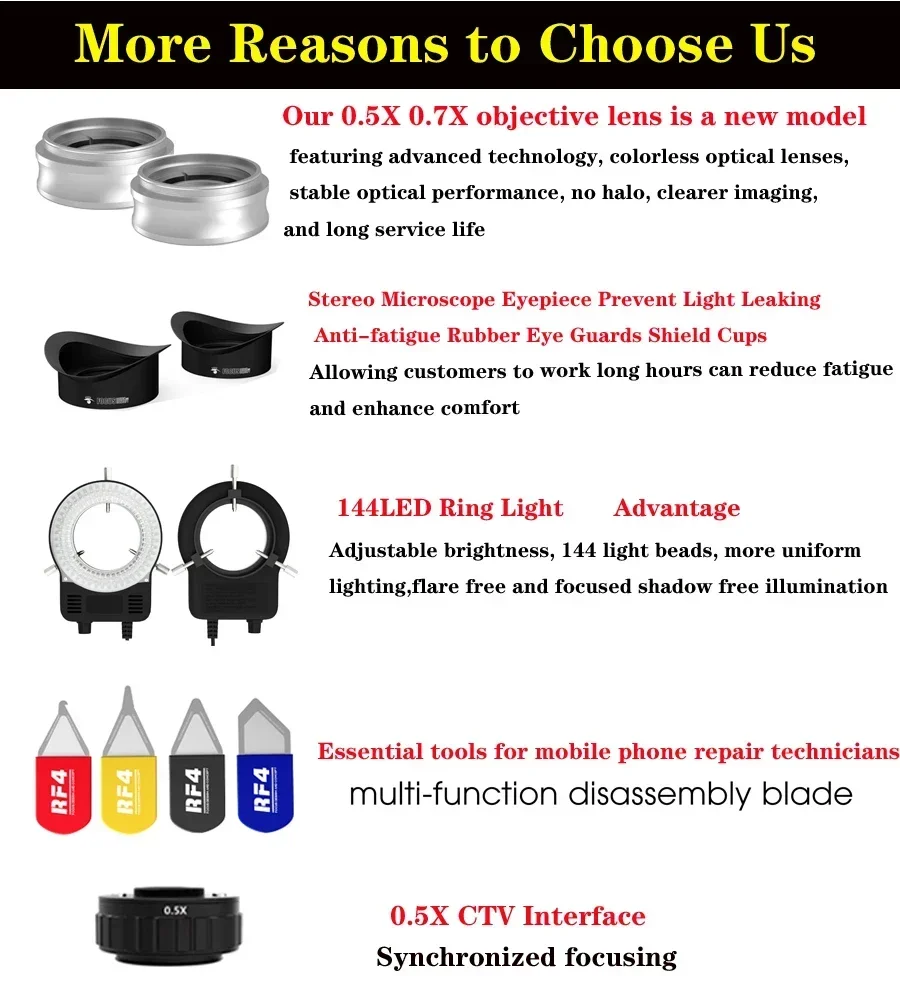

0.5X adapter
1 The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome plated bayonet.
2 The adapter ring can use LCD to focus. This focusing mode is manual.
The 3 adaptor has a transparent mirror inside that helps the microscope display and other displays achieve synchronous zoom.
4 Weight: 0.09kg.
5.

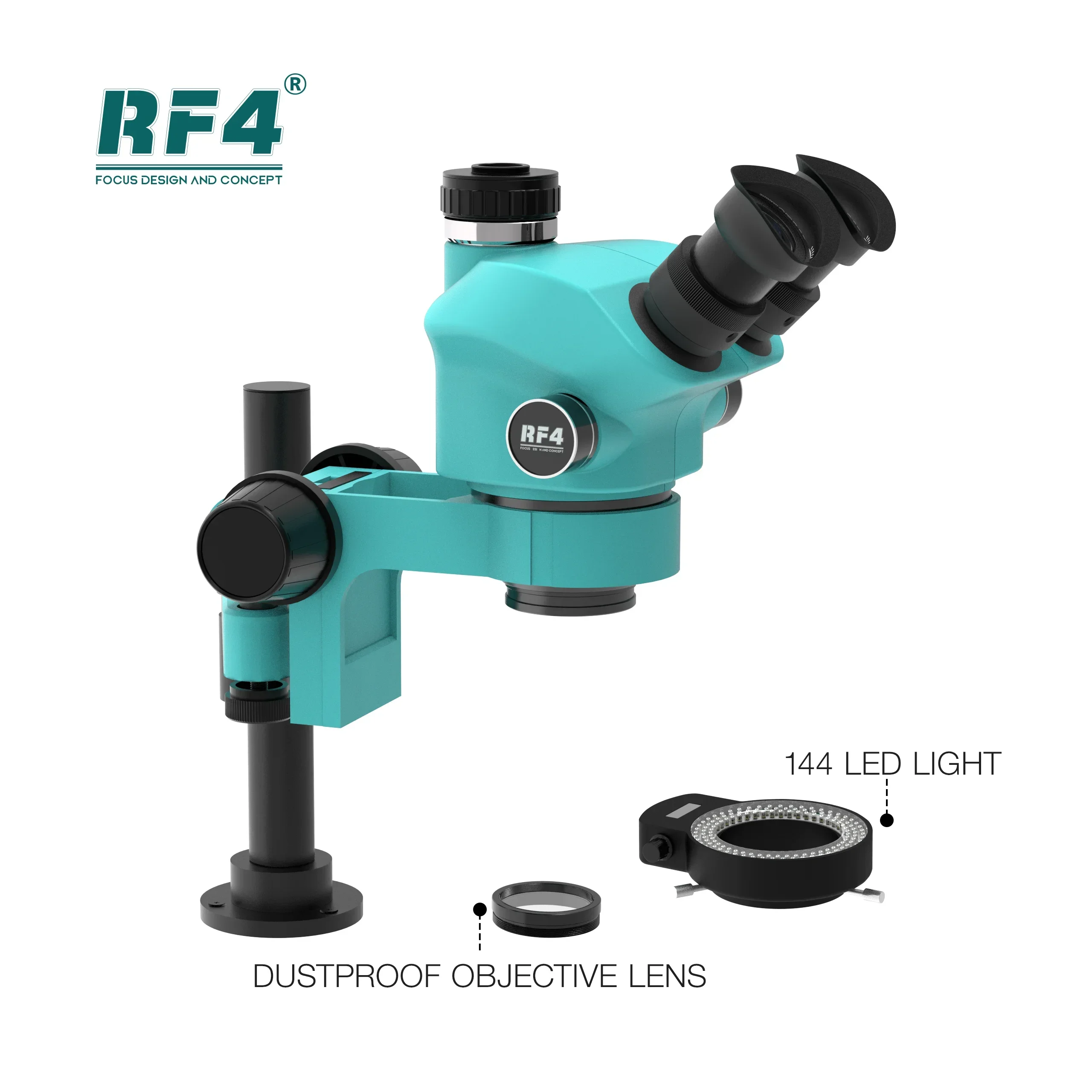

RF4 Adjustable 144 LED Lighting Ring Light Source
1. Parameters
Input AC 100-240V, 50/60Hz
Output DC 12V, maximum 700mA
Maximum output 4.5w-6w
Eu/USA
Lead 144 LED
Lighting (30,000-35,000 Lux)
Color temperature 6000-7000 k
Light white
Inner diameter 60mm
144-led light ring
Power adapter
(1) 144 LED ring lights are specially designed for stereo microscopes and are the best companion for various microscopes and cameras.
(2) It provides the best amount of light for a microscope or camera when additional light sources are needed or when light is insufficient.
(3) Inspection and quality control is no longer a matter of looking at surface defects, and the associated visibility issues are addressed.
(4) Protect users and equipment from mild to severe static electricity
(5) Brightness adjustable, flexible to adapt to any work and consistent lighting object lighting
(6) Adjustable screws for fixing the lamp on the microscope.
(7) Provide cool, uniform, no glare, no focus shadow lighting
(8) Low temperature, even if used for a long time, can also maximize the user's comfort and operability
6.
Dust goggles are used to protect against smoke, oil and dust
It is the ideal lens for every microscope to work together in any condition without affecting its condition to prevent dust, smoke or oil from entering the microscope. Protect the microscope and extend its service life.
1. High quality materials ensure the durability and stability of products
2. Whether the objective lens can be protected to effectively prevent smoke generated during welding from entering the objective lens
3. The high transparency of the lens does not affect observation
4. Beautiful process, strong lens applicability
Stereomicroscopes are simple to operate and widely used.
1. Stereomicroscope is simple to operate.
It is widely used. Zoology, biology, botany, entomology, Histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used for the inspection of raw materials and cotton-wool fabrics.
3. Used in the electronics industry as a triode welding, mobile phone electronic maintenance, watch maintenance and inspection and other operating tools.
4. In biological anatomy, used in regional anatomy.
5. In the manufacture of precision parts, it is used to observe the working process of machine tool equipment, check and assemble precision parts.
6. Check the surface quality of lenses, prisms or other transparent substances with precision ruler.
7. Cultural relics, books, coins, painting and calligraphy, inspection are widely used in textile products, chemical products, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

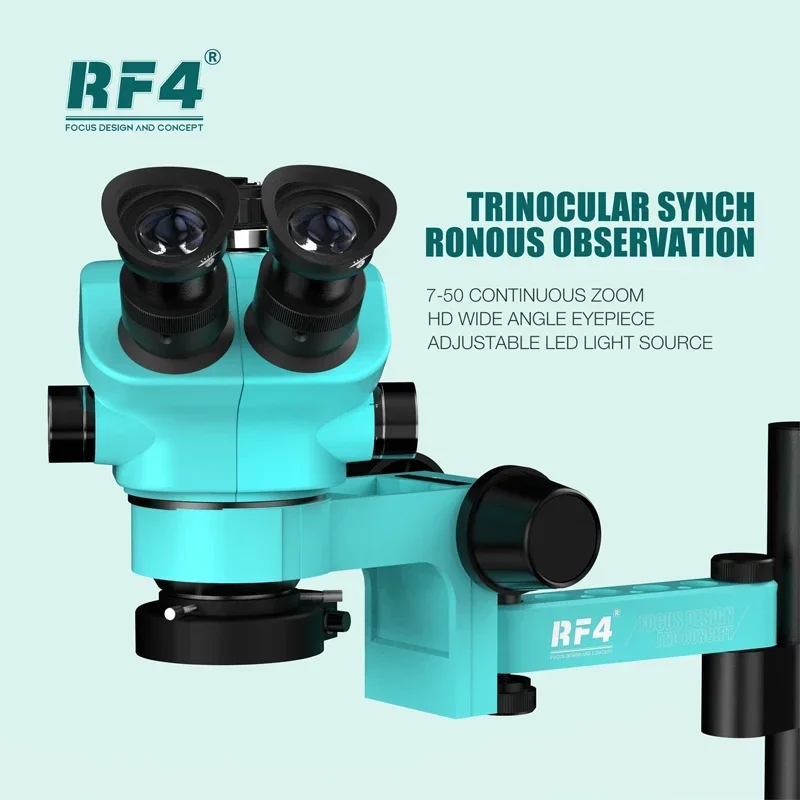

Features: Clear stereo sound, wide field of vision. Pupils are 54 to 75 mm apart.
The Angle of the observation head is 45°, and the diopter of the two tubes is adjusted. Simple operation, no fatigue after long-term use. Wide Field of View Eyepiece WF10X/22mm 10X wide-angle eyepiece with a field of view of 22mm, flat high Angle design, better for search and observation. Ergonomic design, shift handwheel horizontal (axial) two-way setting, high repetition accuracy.
