Description:

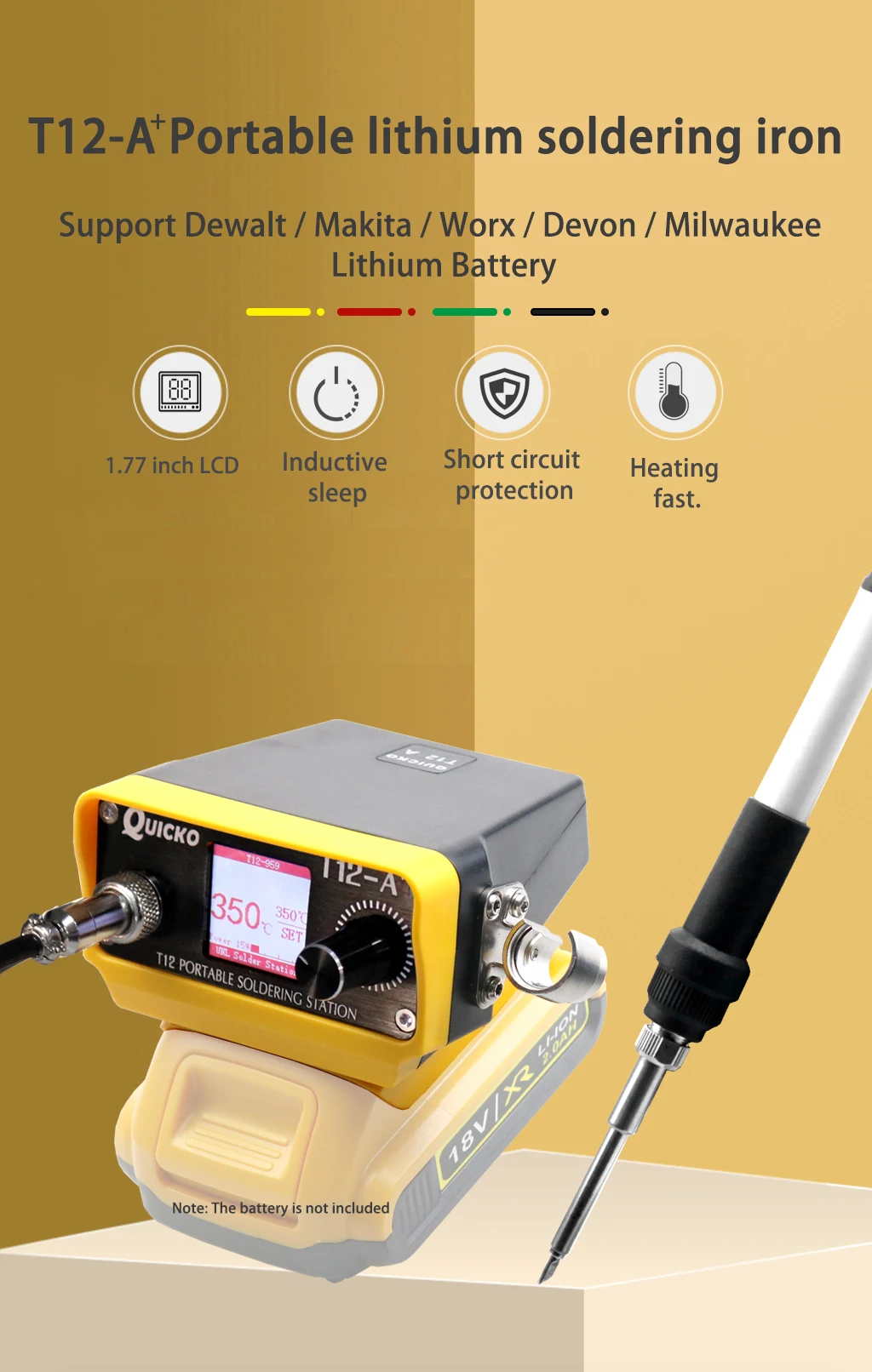

*【Compatibility】Cordless soldering station works for DEWALT 18/20V Flex XR Slide Style battery packs; Devon 18/20V battery; Makita18/20V battery; Milwaukee18/20V battery(Battery Not Included). This portable soldering station helps get your soldering job done more convenient and fast.
*【Fast Heating & Adjustable Temperature】This electric HD digital soldering station heats up fast. Temperature read-outs are displayed via a digital display, effortlessly turn the adjust knob to set the temperature precisely.
*【Compact & Lead-Free Solder】 compact soldering station helps save precious work space. Lead-free soldering tip and soft handle design, provides extended comfort during long term soldering projects.
*【Safe to Use】Made of high quality material, built-in low-voltage protection. With automatic cooling mode, when not in use, the handle is placed on the handle frame, the machine will cool automatically, and the temperature will rise rapidly when picked up.

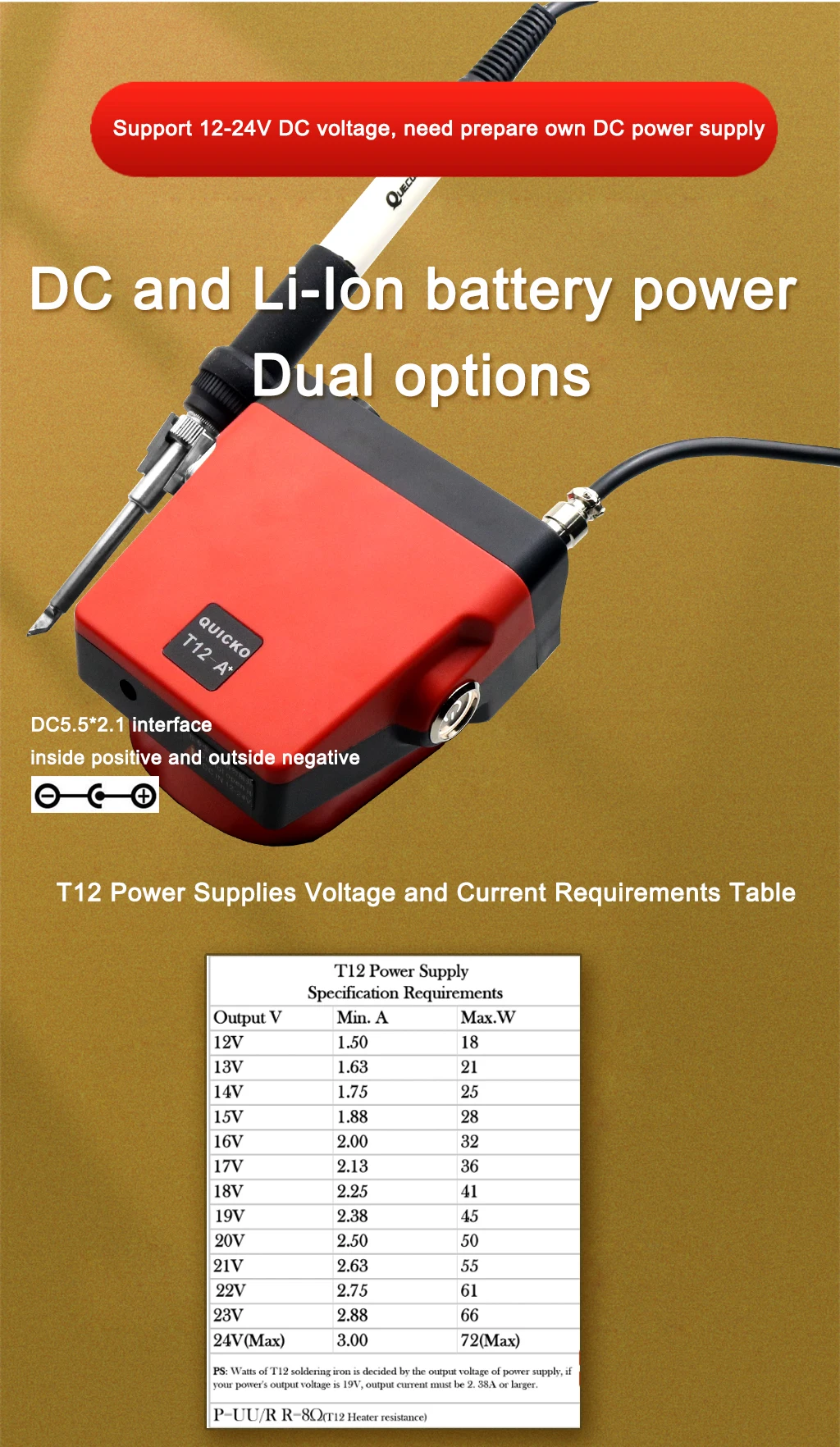

*【Condition】Support with T12 handle heating core, with DC port 24V auxiliary power supply
Basic operation:

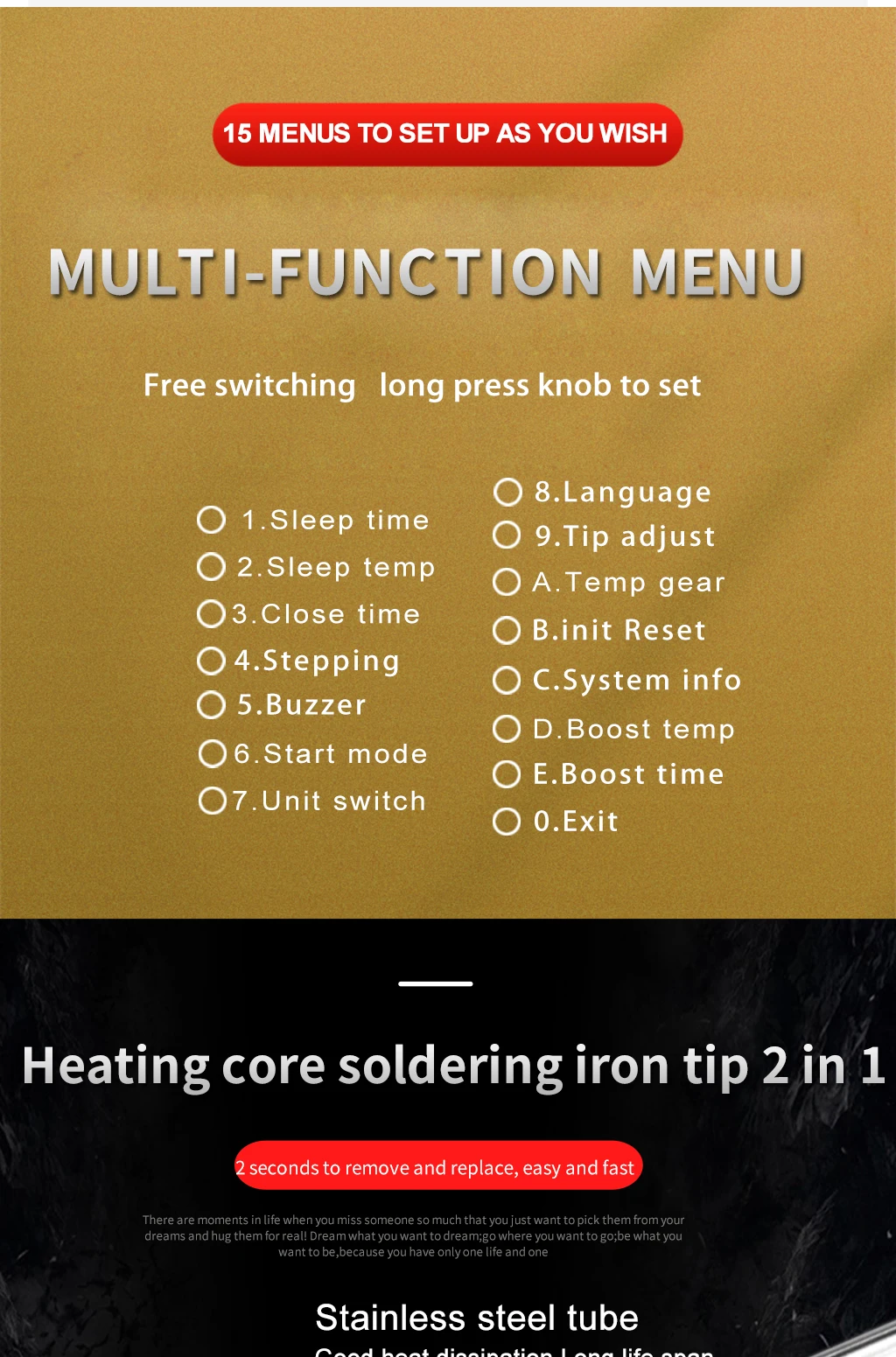

1: If you need to use the temperature staging function, please long press the encoder to enter the menu, select the temperature staging function, set the temperature staging function to available status, then you can use the 3-speed temperature, which is off by default!
2: In the normal mode, long press the encoder to enter the setting menu, short press to select, short press again to cancel the selection, and long press the encoder in the menu interface to exit and return to the previous level!
Important notes for T12 welding station:
- If you enter the menu to change the parameters or restore the factory settings, be sure to pay attention to the following parameters to be set correctly, otherwise there will be errors and other abnormalities!
1. The sleep mode must be set to "Switch", otherwise the sleep seat function will become invalid.
2. Sleep temperature setting ( main menu → sleep setting→ set to 60)
3. close time setting (main menu → close time→ 1)
Specification:
* Power: 72W max
* Work Voltage: 12-24V

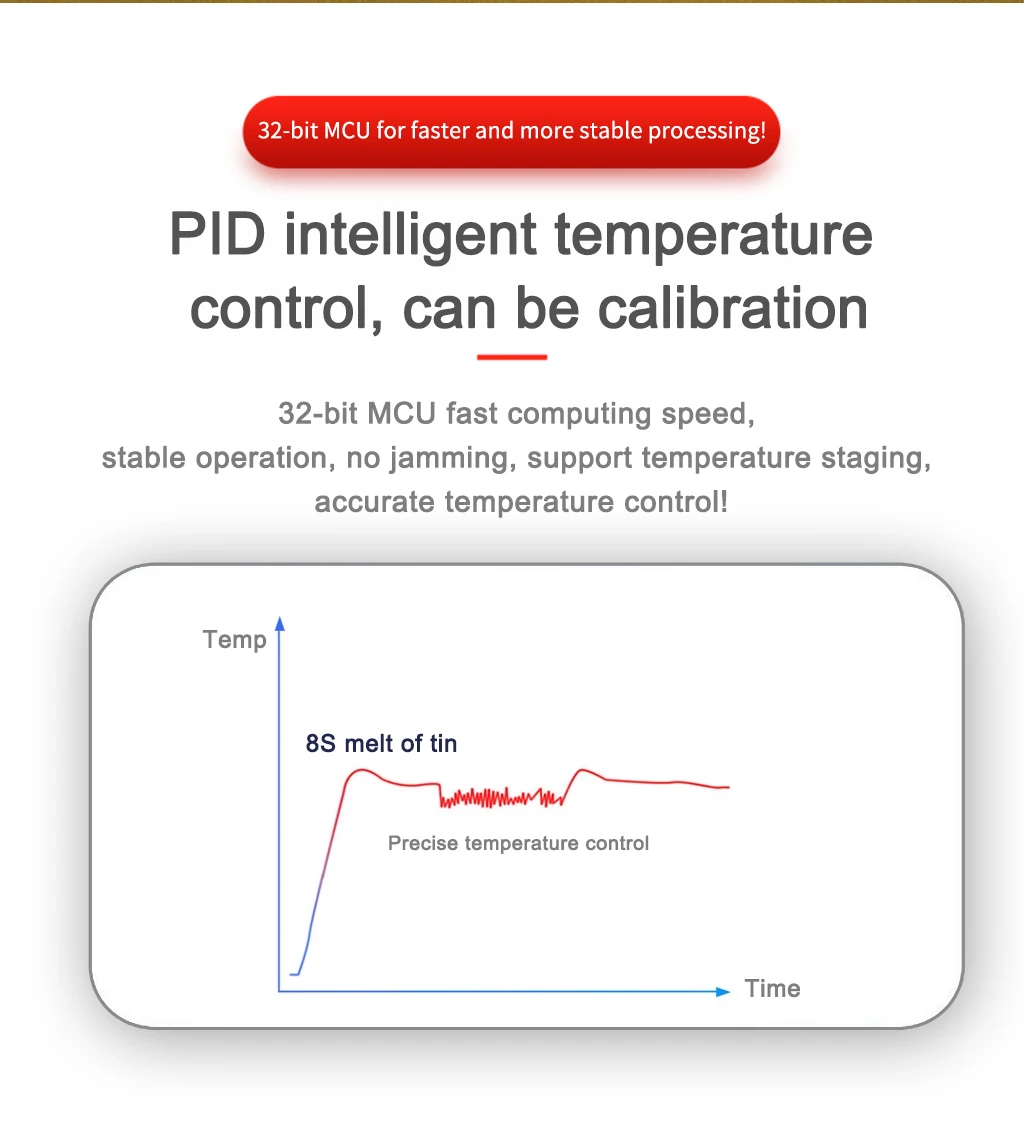

* MCU: 32bit MCU
* Screen: 1.77inch LCD
* Condition：100% full new
* Weight: about 0.35kg

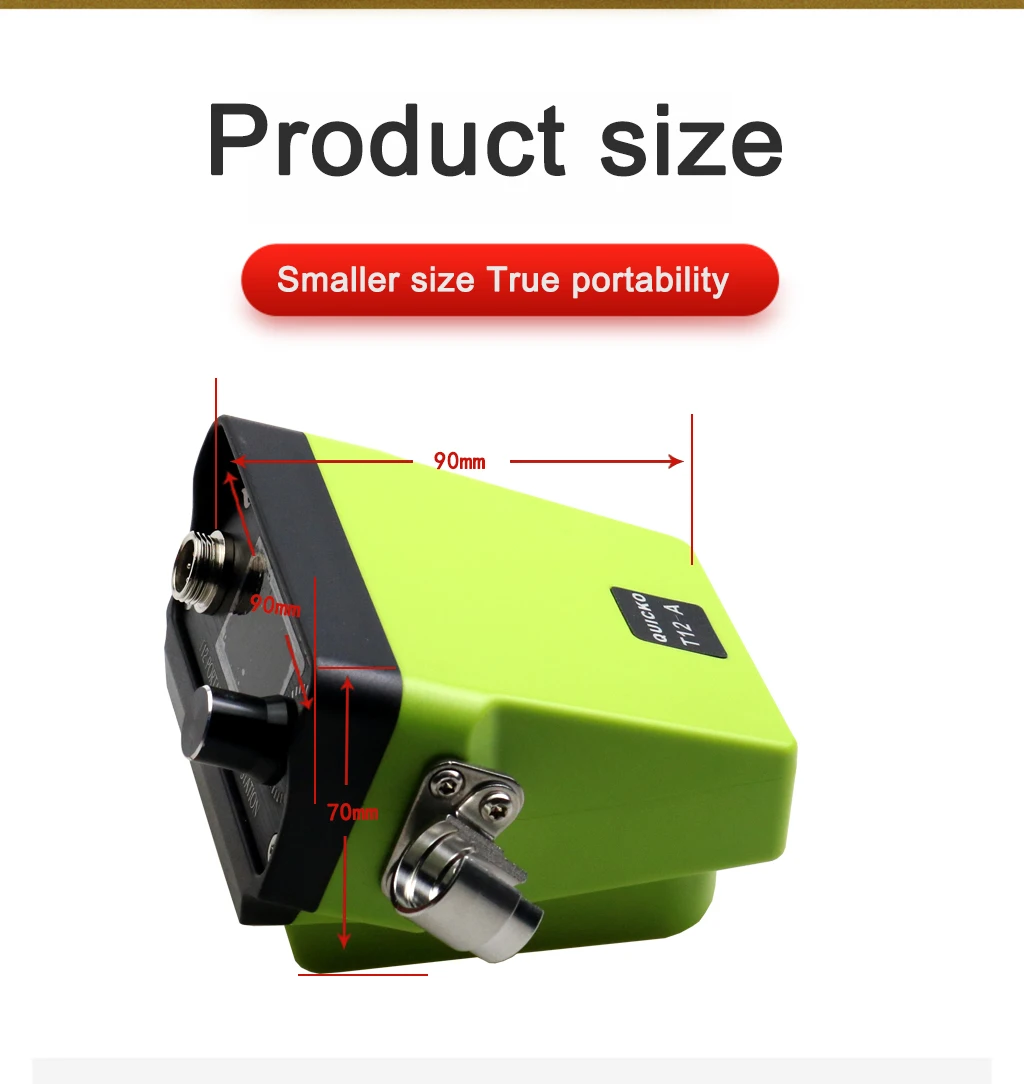

* Size：22.00cm*11.20cm*6.10cm
* Color：as photos show
* Compatible：For Dewalt/ Devon/ Milwaukee/ Makita 18/20V battery
* Advantage：Cordless, easy to carry.
* Boost: support BOOST function
Packaged：
1 x Soldering station(the battery is not included)

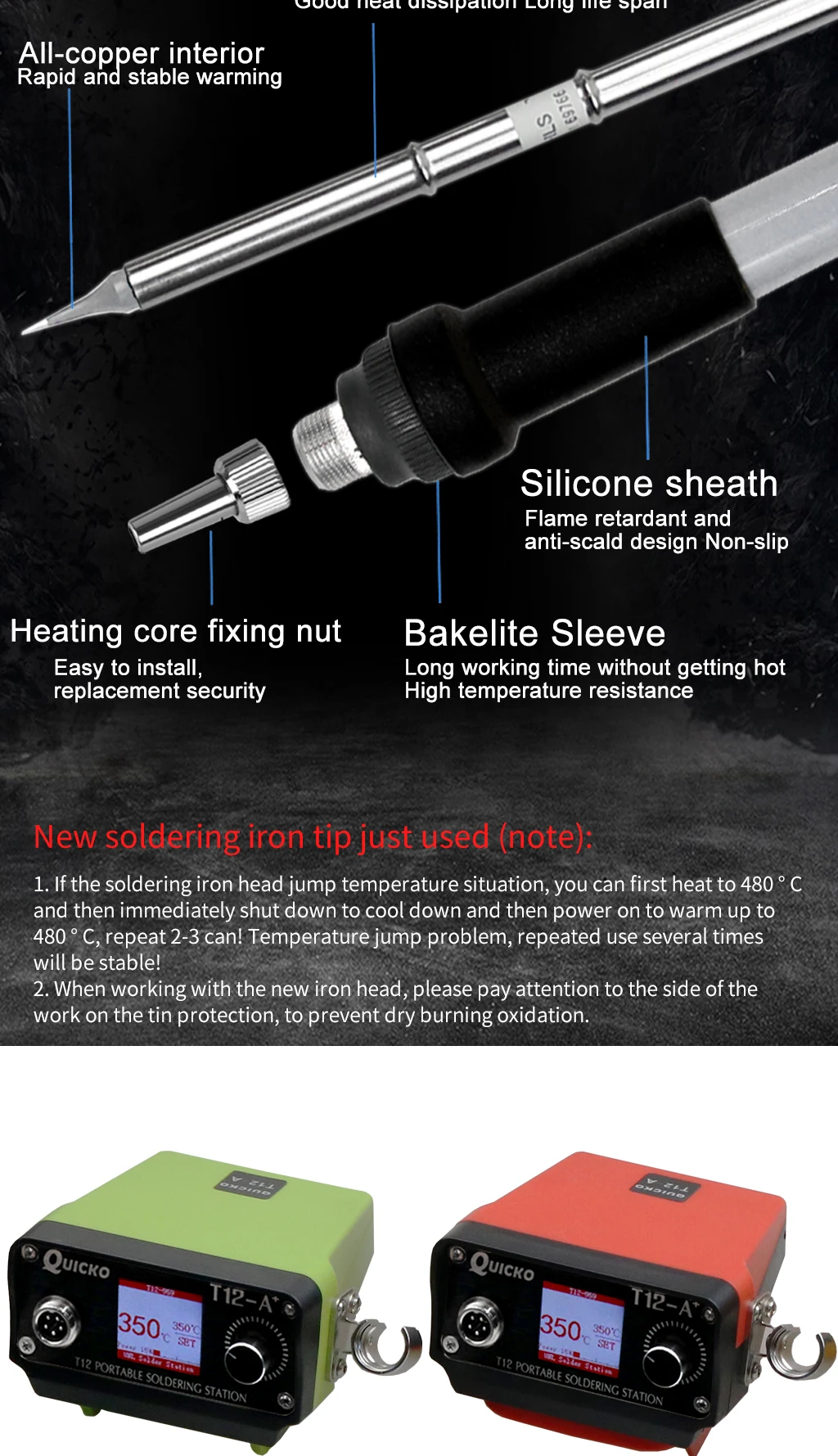

1 x T12-K iron tip
1X 907 soldering handle
Note:
1. If you are not sure if your battery model is suitable, please contact us before purchasing.
2. The battery in the picture is only used for function demonstration and is not included in the shipping list. You need to prepare the battery by yourself.
